Grinding of Steel for an Automotive Application

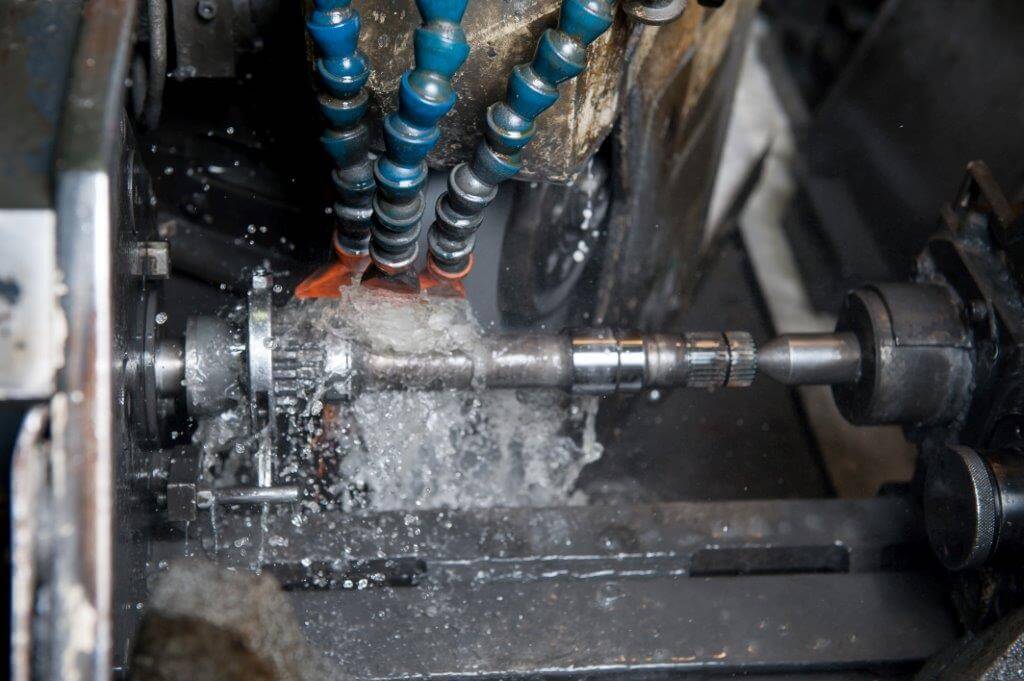

Grinding of Steel for an Automotive Application - Precision Grinding Portfolio | Sturdy Grinding | New Haven MI - 2016_Web_Site_pics_(71)The tight tolerance profile grinding shown here is an example of the precision work Sturdy Grinding and Machinery is known for. Using our advanced Mitsubishi PD32-B50 precision and production grinding machine we can effectively process SAE 8620H steel to the specifications named in any customer supplied drawing.  In this example, we maintained a tight tolerance of ± 0.005mm. The final dimension of this part was180mm in length, with a material finish of 20 RA.

We employed comprehensive inspection protocols to ensure the parts we produced were consistent in terms of integrity and quality; including dimensional, visual, runout, finish, and length. For this customer, we produced 5,000 parts per week as needed. For more details about this steel grinding application or the other centerless and CNC OD grinding capabilities available at our ISO approved shop, please see the table below or contact us directly.

Highlights of a Steel Grinding Project for an Automotive Application

Capabilities Applied/Processes Primary: CNC Grinding
Equipment Used to Manufacture Part Mitsubishi PD32-B50
Overall Part Dimensions Length: 180mm
Tightest Tolerances ± 0.005mm
Material Used SAE 8620H
Material Finish 20 RA
In process testing/inspection performed Dimensional Inspection, Visual Inspection, Runout, Finish, Length
Industry for Use Automotive
Volume 5,000 per Week
Delivery/Turnaround Time 1 Week
Standards Met Customer Specifications, 2D CAD Drawing
ISO 9001:2008


Request RFI
