Carbon Steel Grinding for an Automotive Parts Manufacturer

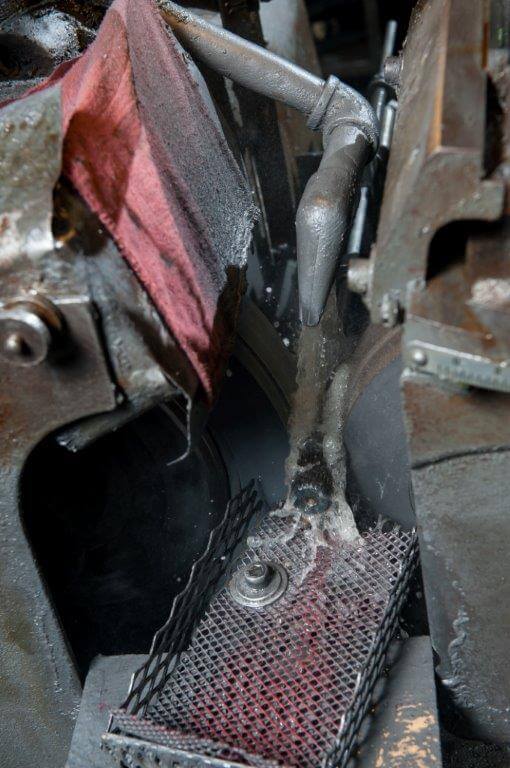

Carbon Steel Grinding for an Automotive Parts Manufacturer - Precision Grinding Portfolio | Sturdy Grinding | New Haven MI - carbon_steel_grinding_for_autoSturdy Grinding and Machinery was contracted to perform carbon steel grinding for an automotive parts manufacturer. Our modern Cincinnati #2 OM centerless grinding machine equipped with a diamond roll dresser was employed to process 1045 carbon steel material to the required multi diameter profile. CNC turning was also carried out, and spline and gear hobbing machining process were performed to create the specified part teeth and detailing. The part was subjected to our developed deburring treatment for complete cleaning and smoothing. Finished part dimensions were 6.050” in length, with a diameter of 1.493”.  A tight tolerance of ± 0.0003” was maintained throughout machining, and the units were finished to an Rmax of 3.5.

Comprehensive in process and post production testing was implemented to ensure accuracy and integrity, including dimensional, visual, finish, runout, roundness, and lead testing and inspections. We create 5,000 parts a week for this customer, with a typical turnaround time of 1 week. For more about this automotive part grinding project or the other multi diameter part grinding capabilities available please see the table below or contact us directly.

Highlights of the Carbon Steel Grinding Project

Capabilities Applied/Processes Primary: Grinding
Secondary: CNC Turning, Hobbing - Spline and Gear, Deburring
Equipment Used to Manufacture Part Cincinnati #2 OM
Overall Part Dimensions OD: Ø 1.493"
Length: 6.050"
Tightest Tolerances ± 0.0003"
Material Used 1045 Carbon Steel
Material Finish R max 3.5
In process testing/inspection performed Dimensional Inspection, Visual Inspection, finish, Runout, Roundness, Lead
Industry for Use Automotive
Volume 5,000 per Week
Delivery/Turnaround Time 1 Week
Standards Met Customer Specifications, 2D CAD Drawing
ISO 9001:2008
